Summit Off-Road Caravan Original

Looking for an adventure-packed journey through Australia’s rugged terrain? Look no further than our 21ft Off Road Summit- an Australian made caravan designed to handle even the toughest off-road conditions. With a range of upgradable options to best suit your needs, the Summit can comfortably sleep up to 5 people, making it the perfect choice for your next adventure. Configure your dream build today and experience the freedom and flexibility of an off-road caravan designed with your needs in mind.

Warranty Details

Summit

  • Our Summit exclusively features a stiff and strong carbon composite body.
  • Our Summit includes the majority of our top of the range options, whilst still allowing you to change key options to suit your preferences.

Dimensions

  • Overall length: 8.8m / 28.9ft
  • Body length Summit: 7.1m / 23.3ft
  • External width: 2.5m / 8.2ft
  • External height: 3.1m / 10.2ft
  • Internal height: 2m / 6.5ft
Keep scrolling for more options.

Starting Weights

  • Starting Weight Summit: ~ 3,190kg
  • Starting Ball Weight Summit: ~ 250kg estimated
  • Maximum Ball Weight Summit (do not exceed): 400kg

Starting weights are without additional options and with empty water tanks.

Chassis

  • Strong yet weight saving construction
  • Hot dipped galvanised
  • Underslung mud flaps

Couplings & ATM Limits

Cruisemaster DO45 Hitch & 4,000kg ATM

The Summit ATM upgrade includes coupling and chain upgrades as well as chassis strengthening.

NOTE that the Summit will have an ATM of 4,200kg.

Power Jack

Our Power Jack is standard on all our models for ease of use and safety.

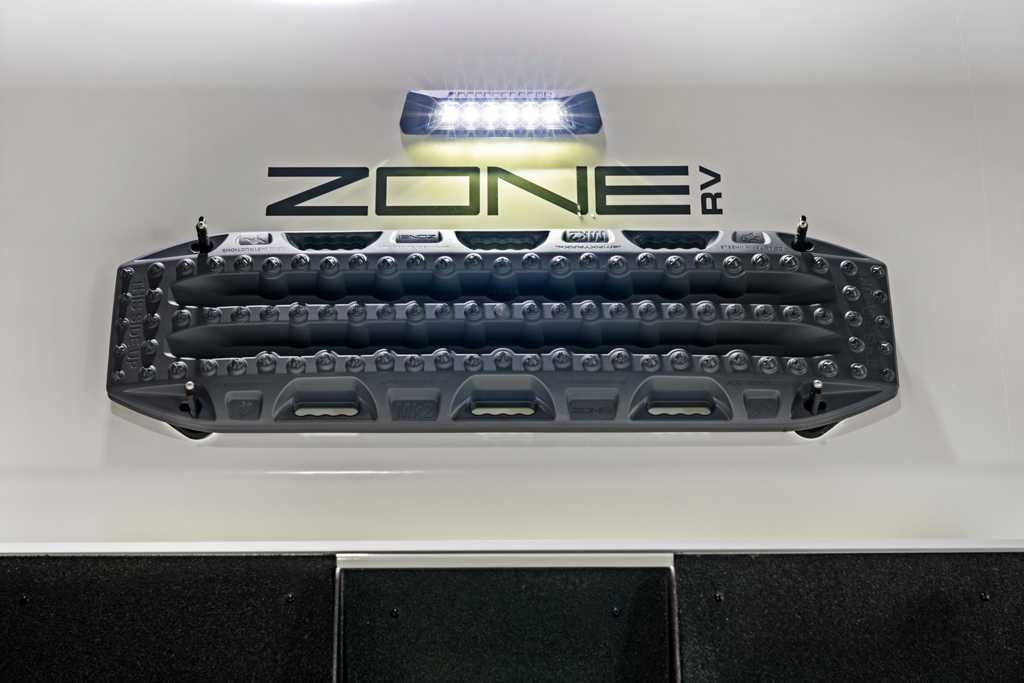

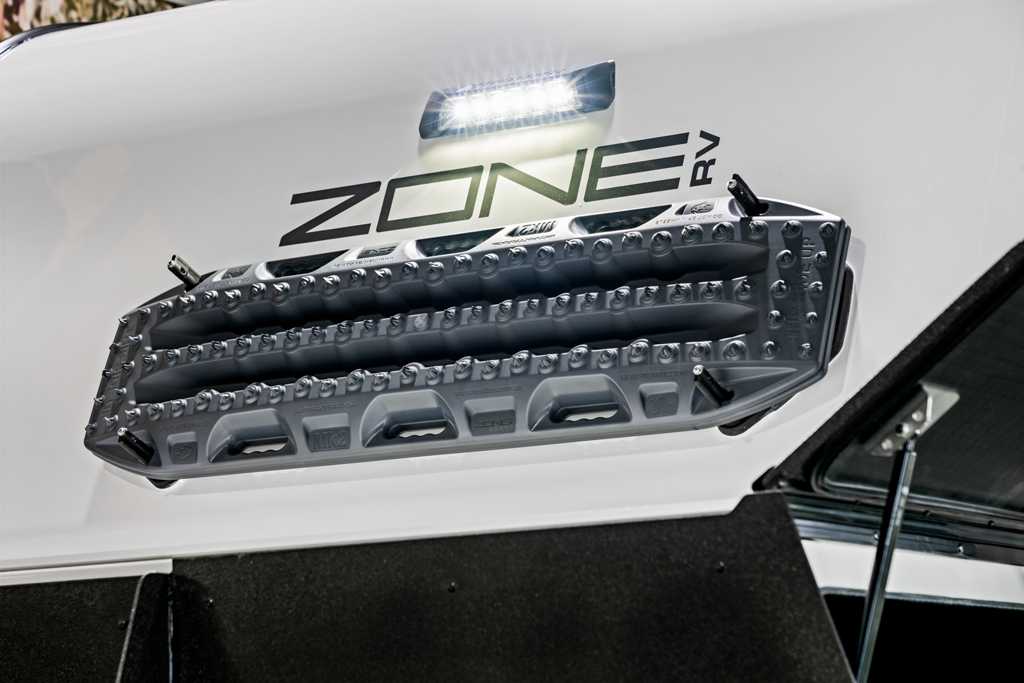

Maxtrax

MAXTRAX is the easiest and safest option for a variety of recoveries. We include one pair of ZONE RV branded MAXTRAX and Mounts.

Summit Incorporated Front Toolbox

  • Evolution of the Expedition Front Toolbox for our Full Sized Caravans
  • Zone RV designed and built
  • Composite to reduce weight
  • ~1,100L internal volume
  • Gull-wing doors open upwards for easy access
  • Protective coating to protect from stone damage
  • A compressor outlet utilising the onboard compressor for tyre inflation.
  • Lockable water tap
  • Angled front to deflect stones downward
  • Centre storage houses 2 x 4.5kg gas bottles. These are out of the way yet easy to access when refilling
  • Two storage areas on the sides for fire-wood or dirty gear
  • ~1380L externally accessed underbed storage

Outdoor Lights

  • There’s a strong LED work light above the toolbox to help with tasks in this area, and there’s also a rear light.
  • Light above the tunnel boot – and can be changed from amber/fluorescent

Stabilisers

The included front and rear stabilisers provide the necessary stability at camp.

Security

WiTi Anti-Theft System with GPS is included. The WITI Motion indicator will show whether the system is armed (on) or disarmed (off). If movement is detected it will sound a loud alarm, and it will apply the brakes on the caravan if someone tries to move the van.

The GPS tracking feature is a Subscription paid directly to Witi. visit WITI website for more information HERE.

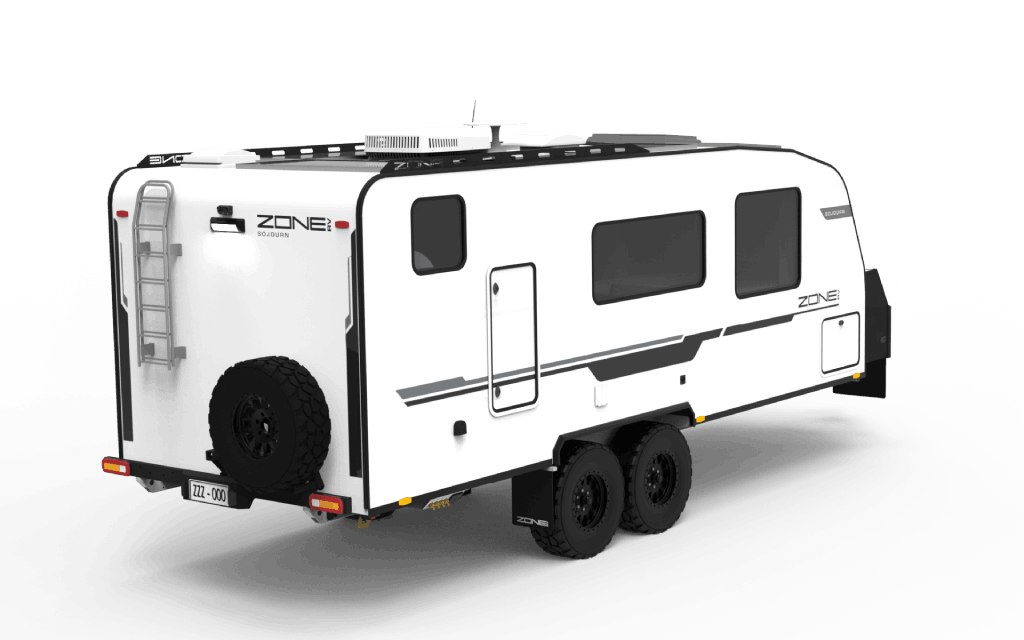

Protection Pack

The Protection Pack adds a rubberised Tough Coat on the drawbar and along the full lower sides of the caravan. This specialized coating ensures maximum protection, especially when embarking on off-road adventures. Upgrade now!

Wheels & Tyres

While we do offer popular stud patterns, unfortunately, it’s not possible to swap or provide wheels for factory fitment.

Suspension, Brakes & Stud/Offset

Cruisemaster ATX suspension is the best off-road suspension for Australian conditions.

Electric Stability Control

The BMPRO SwayControl automatically corrects caravan sway by applying braking force to the left and right brakes independently. It is not compatible with disc brakes.

  • The Summit has a socket included for mobile internet solutions such as Starlink. Read this GUIDE for more information.

Lithium Battery Charger

POWER EVERYTHING, ANYWHERE

The Australian Made Redarc Manager Alpha 100 delivers up to 100A of charging from a combination of available power sources, including solar, AC and DC . With this much power on tap you can run everything from induction cooktops, to air conditioners, to fridges. The Manager Alpha 100 redefines mobile power management.

THE ONLY CHARGER OF ITS KIND

You’ll never be without a charging option with The Manager onboard. The Manager is the only charger to charge from AC, DC and solar allowing you to charge while you drive, while plugged in at camp or from the sun.

Lithium Battery Bank

Larger battery banks help you ride out bad weather until full solar generation returns. If you plan on spending longer periods off-grid, larger banks are ideal.

Solar

1,520 Watts of Solar power. Bigger capacity solar arrays allow the battery banks to be replenished rapidly in peak sunshine. Connect a portable solar blanket to reach the sun from shaded campsites or extra solar power.

Inverter

The included 3,000W 240V inverter is powerful enough to run most of your appliances.

GPS Odometer

The Hummingbird Electronics Odometer operates via GPS and makes tracking service intervals effortless.

Water

  • Two poly water tanks totalling 400L.
  • Tanks can be isolated and individually filled in case of picking up contaminated water
  • Underbody aluminium water tank armour
  • Water level gauges connected to RedVision display
  • 12V water pump and in-line water filter

Greywater

  • 100L poly greywater tank
  • Underbody aluminium tank armour
  • Greywater bypass system

Recovery Points

  • Pair of rated rear recovery points
  • We recommend using a bridle to distribute the load across both points during recoveries

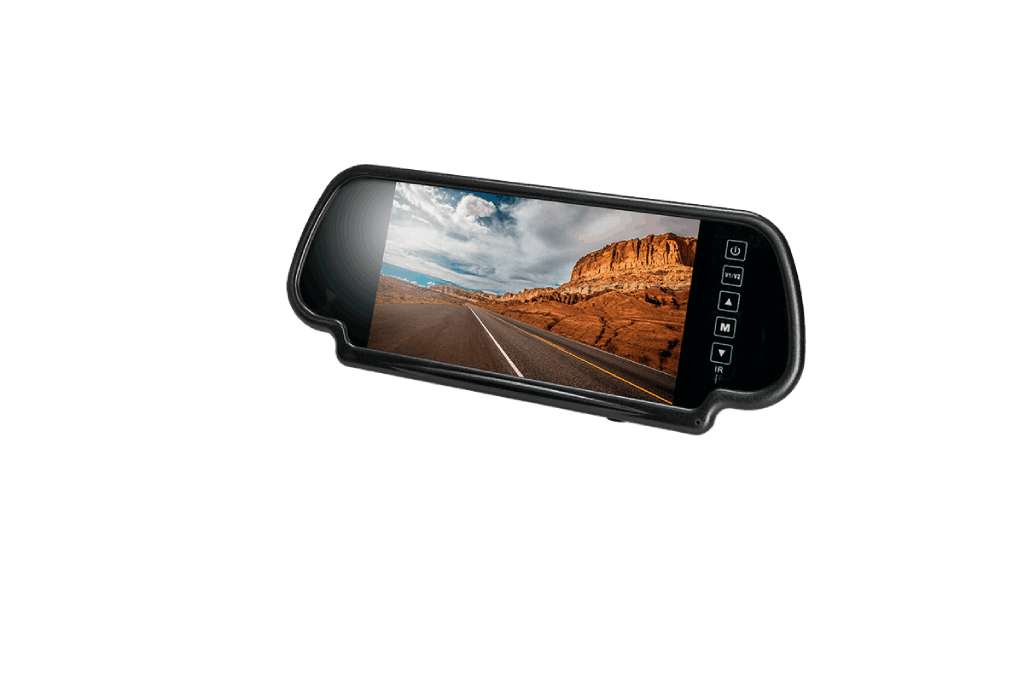

Reversing Camera

  • Reversing camera with both wide and narrow lenses
  • In-vehicle monitor provides comprehensive visibility

Spare Wheel

A single spare wheel is included as standard. By choosing to match the stud pattern with your tow vehicle, it may be possible to share spare wheels and go without a second spare to save weight. NOTE: You can have only one spare tyre with the ladder option.

Ladder

The ladder is helpful for cleaning solar panels and roof accessory checks. Ladder not available when dual spare tyres selected.

Disclaimer: ZONE RV does not recommend standing on the roof.

Bike Carrier

  • The included Bike Carrier Mount attaches above the rear bar and suits the iSi bike carriers specifically (sold separately). These carriers are particularly strong across corrugations and don’t obstruct the lights or number plate.
  • The ISI bike mounts are rated to hold 32 kg in total. Please note this is not including the weight of the bike rack itself.

Awning

Electric Awning. Width is 17ft.

Outdoor Kitchen

  • Includes Portable Induction Stove
  • Collapsible sink
  • Outdoor TV Bracket
  • 240 power outlets
  • 12v outlets
  • 2 x USB
  • Spacious storage solutions

Outdoor Tap & Shower

  • Lockable outdoor tap
  • Hot & cold outdoor shower

BBQ Slide

  • The BBQ Slide is perfect for your BBQ or as a quick outdoor table.
  • It features a durable stainless top for food preparation and a composite body for weight saving.
  • 1 x Gas bayonet for BBQ.
  • Fully Stainless Steel Sizzler Max BBQ

Step

Electric double step.

Windows & Doors

  • Premium entry door with security mesh
  • Double glazed tinted windows with block out blinds and insect screens
  • Marine style external hatches

Door Positions

  • Queen Bed (rear door)
  • Queen Bed + Bunks (front door)

Floor Plans

  • Couples – L-Shaped Lounge
  • Family – L-Shaped + Bunks

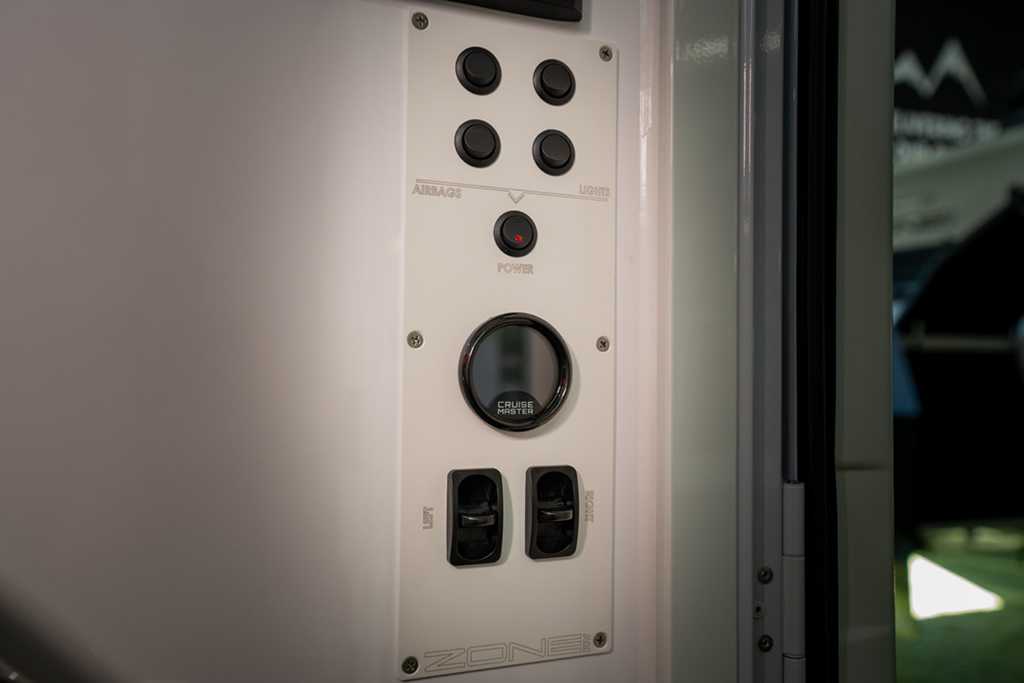

Levelling

Auto Levelling (Level 4 Cruisemaster Airbag Control)

  • Features a manual & automatic leveling mode.
  • Automatic mode allows you to bring your van back to travel height by flicking the switches.

Please see our guide HERE to understand more about our airbag leveling options.

Sound System

The touchscreen Fusion sound system pairs with your devices via Bluetooth.

Interior Features

  • REDARC RedVision Display Unit
  • 2 wall mounted 12V fans
  • 12V USB and 240V outlets
  • LED strip lighting
  • Dimmable touch lights in that luminate in white or blue

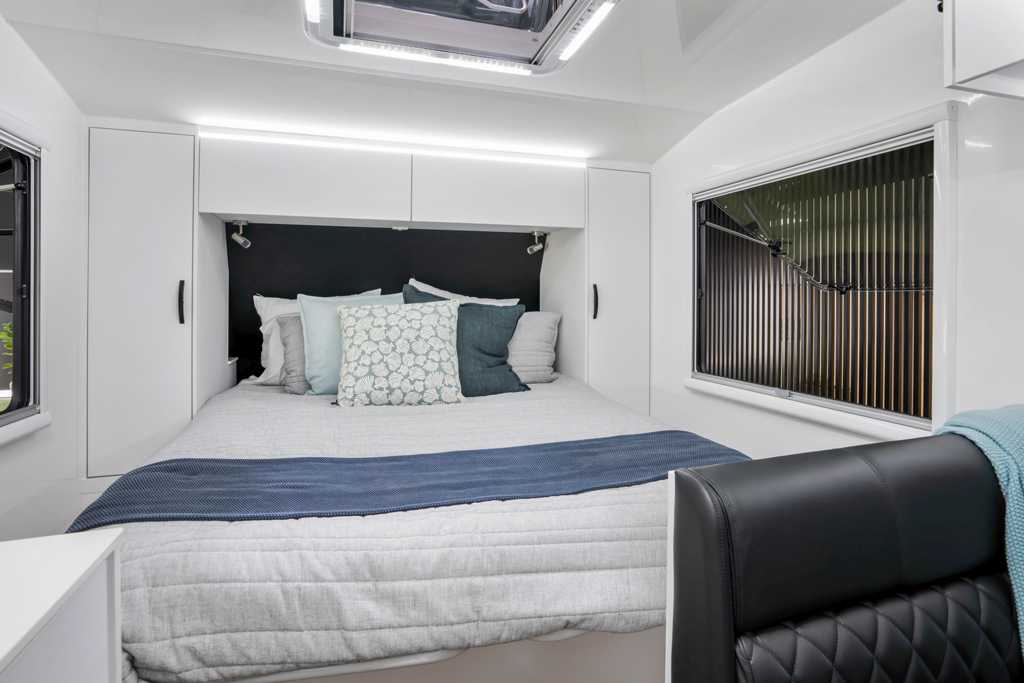

Bedroom Features

  • Gas strut assisted lift-up bed storage area
  • Twin bedside robes with hanging rail and removable shelves are standard
  • 12V & USB outlets
  • 240v outlets
  • Overhead storage lockers
  • Padded upholstered bed head
  • Foot lockers

Bed Options

We offer a comfortable queen mattress and luxurious pillow-top.

TV

TV 32″ Included

TV Antenna

The Milenco Power 900 is omnidirectional and offers an exceptional 38dB gain.

Kitchen Features

  • Synthetic stone benchtop
  • Awning side serving window
  • Large undermounted sink
  • Soft close drawers with locking latches
  • Full height pull-out double pantry (only available in couples layout)

Kitchen & Bathroom Fittings

Microwave

The Microwave is a 20L and 700w. Featuring a positive door lock to prevent opening during travel, this microwave oven is designed specifically for the RV market.

Not choosing a microwave is another popular choice for those looking to save weight.

Cooktop

Safiery Dual Induction

Lounge Configuration

The Cafe Lounge with bed insert option includes footrests.

Lounge Colour & Upholstery

Our PU Leather option is high quality, but leather is more durable and breathable.

We use New Zealand leather which may have colour and grain variations due to the nature of this natural material.

Diesel air heater

Diesel Air Heater

  • If optioned a diesel tank is fitted on the front tool box
  • Constant ambient temperature, continuous control
  • Low consumption, quiet operation

Overhead Cabinet Colours

Lower Cabinet Colours

Flooring

Cabinet Construction

  • Zone RV’s unique composite (timberless) cabinetry with alloy plating system and positive locking smooth pull latches
  • Overhead locker storage in kitchen, living, over bed and ensuite with twin gas strut assist
  • Removable shelves in bedroom robes
  • The Ultralight Composite option saves ~32kg

Fridge

The Thetford Fridge & Freezer is 274L total volume – 202L fridge and 72L freezer. It efficiently runs on 12V and features internal LED lighting.

Air Conditioner

  • 2,400W cooling
  • 1,700W heating
  • Works with 3,000W Inverter option
  • Efficient Diesel Air Heater recommended for longer stays off-grid

Note: You can only select air-con with a minimum of 400ah of batteries.

Ensuite

  • Ogo composting toilet
  • Vanity basin with mixer tap
  • Internal shower cubicle

Diesel Water Heater

The Thermo Top Evo 5 diesel hot water system efficiently provides an ample supply of hot water by heating glycol to 80°C in a Buffer Tank and transferring heat to cold water through a Plate Heat Exchanger, delivering temperatures of 40-50°C (for 3-4 mins) for various applications.

  • 12L Diesel tank
  • Plumbed to the shower
  • Plumbed to the kitchen

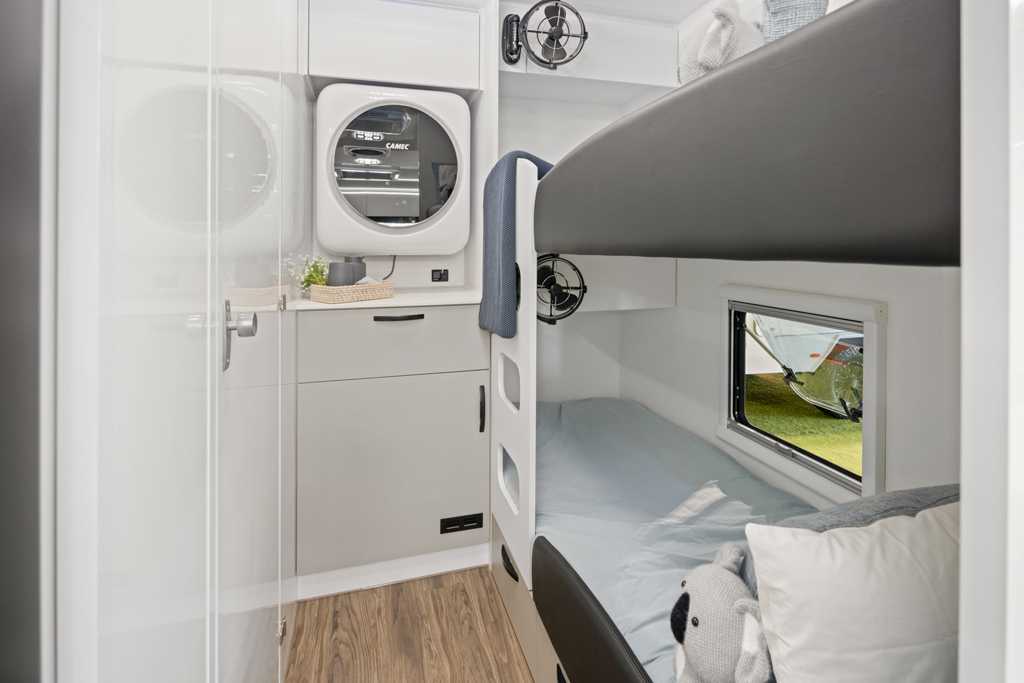

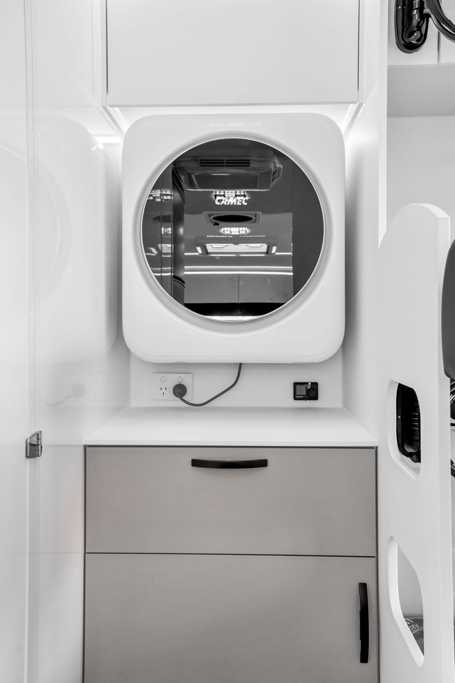

Washing Machine

  • Great for off-grid living
  • Uses 18L per load on quick wash
  • 2.5kg load
  • 25 – 45 min cycle

Choose Your Delivery Location

  • Hangar-O Handover Experience included in Sunshine Coast, QLD delivery option
  • Show Special: No delivery fee for Sydney or Melbourne Destinations!
  • Sydney, NSW delivery provided by Off Grid Outfitters
  • Melbourne, VIC delivery provided by Outbound RVs

Your Build

Summit Delivery timeframe: February 2025
