Expedition

The Zone RV Expedition is our most adventurous model yet. The aggressive rear departure angle, shorter length and pop top roof allow you to tackle the toughest tracks. Featuring a full sized queen bed, living off grid is more comfortable than ever!

Warranty Details

Expedition Off-Road Caravan

Dimensions

  • Overall Length: 7.2m/  23.7ft
  • Body Length: 5.25m/ 17.5ft
  • External Width: 2.05m/ 6.8ft
  • Internal Height (Roof Down) 1453mm/ 4.7ft
  • Internal Height (Roof Up) 2053mm/ 6.7ft
  • External Height (Roof Extended): 3.16m/ 10.4ft
  • External Height (Roof Down): 2.61m/ 8.5ft.

Starting Weights

  • Starting Weight: 2464kg

Starting weights are without additional options and with empty water tanks.

Chassis

  • Strong yet lightweight construction
  • Hot dipped galvanized steel chassis

Couplings & ATM Limits

The Expedition will come with a DO35 hitch rated at 3,500kg.

Power Jack

  • Our Power Jack is standard on all our models for ease of use and safety.

Protection Pack

The enhanced protection pack adds a rubberised tough coat on the draw bar and the front of the caravan body.

Stone Stomper

  • To protect your investment a Stone Stomper is included!
  • The Stone Stomper stone guard provides unmatched protection for your Zone RV, safeguarding it from rocks and debris, minimising wear on both the caravan and tow vehicle. Attaching securely between the vehicle and the caravan, it effectively deflects rocks, stones, and other debris, reducing damage to the body and rear window.

Flat Out Multi-Reel Pack

Every van now includes a premium hose and cables pack – the Flat Out Multi-Reel pack!

The Flat Out Multi-Reel pack keeps your Zone RV organised and hassle-free. Its easy-wind design reduces tangling and kinking, ensuring quick setup and pack-down when you arrive or leave camp.

The package Includes:

  • 15m Flat Out Drink Water Hose as 2×7.5m on Multi-Reels
  • 9m Flat Out Sullage Hose on Multi-Reel
  • 25m Cat 6 Outdoor Network Cable (suitable for Starlink) on Compact Multi Reel
  • Compact Multi-Reel (for up to 15m of your extension lead)
  • Narrow Multi-Reel (for up to 22m of heavy duty extension lead)
  • B.E.S.T Silversafe inline water filter
  • 1.5m Filter-to-van hose

Storage Areas

  • Large under bed storage area
  • Dual access from toolbox with shelving areas
  • All storage areas are waterproof & dustproof

Security

The WITI the Motion indicator will show whether the system is armed (on) or disarmed (off). If movement is detected it will sound a loud alarm, and it will apply the brakes on the caravan if someone tries to move the van.

The GPS tracking feature is a Subscription paid directly to Witi. visit WITI website for more information HERE.

MAXTRAX

Maxtrax is the easiest and safest option for a variety of recoveries. We offer a pair of Zone RV branded Maxtrax standard with the Expedition.

Windows & Doors

  • Security door with mesh
  • Marine style hatches on all external doors.
  • 360 windows above the body when the roof is lifted.

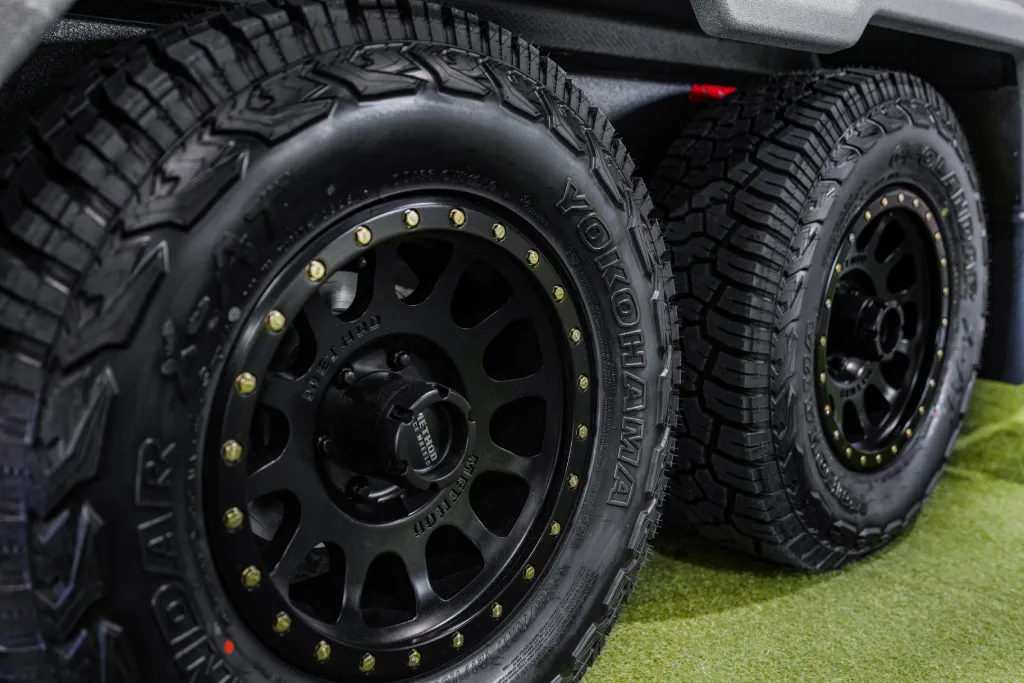

Wheels & Tyres

While we do offer popular stud patterns, unfortunately, it’s not possible to swap or provide wheels for factory fitment.

Suspension, Brakes & Stud/Offset

The BEST Off Road suspension for your adventures.

Lithium Battery Charger

POWER EVERYTHING, ANYWHERE

The Australian Made Redarc Manager Alpha 100 delivers up to 100A of charging from a combination of available power sources, including solar, AC and DC . With this much power on tap you can run everything from induction cooktops, to air conditioners, to fridges. The Manager Alpha 100 redefines mobile power management.

THE ONLY CHARGER OF ITS KIND

You’ll never be without a charging option with The Manager onboard. The Manager is the only charger to charge from AC, DC and solar allowing you to charge while you drive, while plugged in at camp or from the sun.

Lithium Battery Bank

Larger battery banks help you ride out bad weather until full solar generation returns. If you plan on spending longer periods off-grid, larger banks are ideal.

Special Offer: 600Ah included as standard as a limited time offer. That also means that you can upgrade to 800Ah for half the normal price!

Solar

Bigger capacity solar arrays allow the battery banks to be replenished rapidly in peak sunshine. Connect a portable solar blanket to reach the sun from shaded campsites or extra solar power. Please note that this image shows the maximum capacity of solar 1080 watts. Standard option will be 720 watts.

Special Offer: 900W of solar included as standard as a limited time offer. That also means that you can upgrade to 1080W only an extra $500!

Inverter

The included 3,000W 240V inverter is powerful enough to run most of your appliances.

GPS Odometer

The Hummingbird Electronics Odometer operates via GPS and makes tracking service intervals effortless.

Water

300L Fresh Water

  • 3 x Water Tanks
  • 225 fresh water
  • 75l drinking water

Greywater

  • 100L poly grey water tank
  • Greywater bypass system

Recovery Points

  • Pair of rated rear recovery points
  • We recommend using a bridle to distribute the load across both points during recoveries

Stabilisers

Two rear stabilisers in combination with the front jack provide the necessary stability at camp while saving weight.

Reversing Camera

  • Reversing camera with both wide and narrow lenses
  • In-vehicle monitor provides comprehensive visibility

Spare Wheel

1 spare wheel is included as a standard option.

Outdoor lighting

Bike Carrier

Our Bike Carrier Mount attaches above the rear bar and suits the ISI bike carriers specifically (sold separately). These carriers are particularly strong across corrugations and don’t obstruct the lights or number plate.

The ISI bike mounts are rated to hold 32 kg in total. Please note this is not including the weight of the bike rack itself.

Electric Awning

Electric awnings are faster to set up and are great for shorter stays and roadside stops.

Pop Up Roof

The Expedition has a pop top roof that’s easy to manoeuvre while traveling, but still provides a spacious interior when living in. Plus, the roof is electronically actuated and can be extended with the push of a button thanks to 4 x electric actuators.

Outdoor Lights

  • A powerful LED light is on the rear over the rear bar.
  • Outdoor lighting is fitted over the kitchen that have cool white and amber options.

Kitchen Features Exterior

Exterior:

  • Upright Fridge 85L
  • Overhead & shelved storage areas
  • Dual induction cook top
  • Vanity mixer
  • Large undermounted sink
  • Upright fridge
  • Amber & Cool white lighting within the kitchen area

Kitchen & Bathroom Fittings

Black (including cabinetry handles)

Cooktop

Dual HOB induction cooktop

BBQ Slide

  • BBQ slide is stored in the front storage box
  • Sizzler Deluxe High Lid BBQ

Outdoor Tap & Shower

  • Lockable outdoor tap
  • Hot & cold outdoor shower
  • Water hose connection at the rear of the caravan next to wheel

Door Position

Rear Door

Step

Double Step – Manual

Levelling

Manual Leveling (Level 3 Cruisemaster Airbag Control)

  • Use the toggles to manually adjust the height of your airbags.

Please see our guide HERE to understand more about our airbag leveling options.

Floor Plans

The Expedition series comes with a comfortable Queen bed, a cozy cafe-style lounge, and a private ensuite with separate shower and toilet, as well as ample storage options.

Interior Features

  • Redarc redivision display
  • 2 x roof mounted 12v fans
  • TV bracket
  • Bedside nooks for personal items

TV

24″ Smart TV

Ensuite

  • Ogo Composting Toilet
  • Hot & Cold Vanity Mixer
  • Spacious Shower

Washing Machine

  • Great for off grid living
  • 3kg capacity

Diesel Water Heater

The Thermo Top Evo 5 diesel hot water system efficiently provides an ample supply of hot water by heating glycol to 80°C in a Buffer Tank and transferring heat to cold water through a Plate Heat Exchanger, delivering temperatures of 40-50°C (for 3-4 mins) for various applications.

  • 12L diesel tank
  • Plumbed to the shower
  • Plumbed to the kitchen
Webasto diesel hot water system

Air Conditioner

  • Cooling capacity ranges from 2400 W to 3400 W
  • Low profile, slimline design
  • Low noise
  • Works with 3,000W inverter
  • Efficient diesel air heater also included for longer stays off-grid
  • Special Offer: Our most popular option, Air Conditioning, is now included as standard for a limited time.

Lounge Configuration

  • Café style lounge
  • Adjustable table

Lounge Colour & Upholstery

We use New Zealand leather which may have colour and grain variations due to the nature of this natural material.

Lower Cabinets Colours

Cabinet Construction

  • Zone RV’s unique composite (timberless) cabinetry with alloy plating system and positive locking smooth pull latches
  • Overhead locker storage in the outdoor kitchen and living area
  • Bed side storage options

Flooring Colours

Kitchen Features Interior

  • Thetford fridge 175L
  • Coffee or prep station

Bedroom Features

  • Queen size bed
  • Dual sirocco fans
  • Bed side window
  • Bed side storage options

Queen Bed

We offer a comfortable queen mattress.

Double Bunk Option

  • Top bunk is supported by cabinetry and is 1930mm long x 75mm wide and load rating of 60kg.
  • Bottom bunk will be an insert to go in the café style lounge 1350mm long and a load rating of 60kg.

Diesel Air Heater

Choose Your Delivery Location

  • Hangar-O Handover Experience included in Sunshine Coast, QLD delivery option
  • Sydney, NSW delivery provided by Off Grid Outfitters
  • Melbourne, VIC delivery provided by Outbound RVs

Your Build


Delivery timeframe: April 2025
