Sojourn Old Configurator

Looking for an adventure-packed journey through Australia’s rugged terrain? Look no further than our 21ft Off Road Sojourn – an Australian made caravan designed to handle even the toughest off-road conditions. With a range of upgradable options to best suit your needs, the Sojourn can comfortably sleep up to 5 people, making it the perfect choice for your next adventure. Configure your dream build today and experience the freedom and flexibility of an off-road caravan designed with your needs in mind.

Specification

sojourn

Pioneer

  • Our Sojourn in Pioneer specification starts with a complete list of standard options including premium accessories, lithium batteries and solar panels.
  • If you choose a Sojourn in Pioneer specification, you can select additional options to best suit your upcoming adventures using the configurator below.

Summit

  • Our Sojourn in Summit Specification exclusively features a stiff and strong carbon composite body.
  • Our Sojourn in Summit Specification includes the majority of our top of the range options, whilst still allowing you to change key options to suit your preference and weight goals.

Unfortunately the Summit configuration is currently unavailable due to a shortage of Carbon Fibre.

Dimensions

  • Overall length: 8.8m / 28.9ft
  • Body length: 6.4m / 21ft
  • External width: 2.5m / 8.2ft
  • External height: 3.1m / 10.2ft
  • Internal height: 2m / 6.5ft

Starting Weights

  • Starting Weight Pioneer: ~ 2,656kg
  • Starting Ball Weight Pioneer: ~ 180kg
  • Starting Weight Summit: ~ 2,915kg
  • Starting Ball Weight Summit: ~ 225kg

Starting weights are without additional options and with empty water tanks.

Off-Grid

Lithium Battery Charger

The REDARC Manager 30 is used in combination with a BCDC1250D to achieve up to 80A charging while driving, from solar or mains power. Manager 30 connects to the RedVision display and app for effortless switching and data display.

Lithium Battery Bank

Larger battery banks help you ride out bad weather until full solar generation returns. If you plan on spending longer periods off-grid, larger banks are ideal. Note: You can only select air-con with a minimum of 400ah of batteries.

Solar

Bigger capacity solar arrays allow the battery banks to be replenished rapidly in peak sunshine. Connect a portable solar blanket to reach the sun from shaded campsites or extra solar power.

Inverter

The included 3,000W 240V inverter is powerful enough to run most of your appliances.

Water

  • Three poly water tanks totalling 240L
  • Tanks can be isolated and individually filled in case of picking up contaminated water
  • Underbody aluminium water tank armour
  • Water level gauges connected to RedVision display
  • 12V water pump and in-line water filter
  • If choosing to dedicate one of the three tanks for drinking this is 80L

Greywater

  • 100L poly greywater tank
  • Underbody aluminium tank armour
  • Greywater bypass system

Off-Road

Chassis

  • Strong yet weight saving construction
  • Hot dipped galvanised
  • Underslung mud flaps

Protection Pack

The Protection Pack adds a rubberised Tough Coat on the drawbar and along the full lower sides of the caravan. This specialized coating ensures maximum protection, especially when embarking on off-road adventures.

Suspension, Brakes & Stud

From the factory, we can only offer the above options.

Levelling

The airbags in Cruisemaster suspension can be used to level your caravan left to right. The Auto Levelling option automatically returns to driving pressures at the flick of a switch.

Wheels & Tyres

While we do offer popular stud patterns, unfortunately, it’s not possible to swap or provide wheels for factory fitment.

Second Spare

By choosing to match the stud pattern with your tow vehicle, it may be possible to share spare wheels and go without a second spare to save weight. NOTE: You can have only one spare tyre with the ladder option.

2nd Spare Wheel

Couplings & ATM Limits

The ATM upgrade from 3,500kg to 4,000kg includes coupling and chain upgrades as well as chassis strengthening.

Recovery Points

  • Pair of rated rear recovery points
  • We recommend using a bridle to distribute the load across both points during recoveries

MAXTRAX

MAXTRAX is the easiest and safest option for a variety of recoveries. We offer ZONE RV branded MAXTRAX and Mounts.

Electric Stability Control

The BMPRO SwayControl automatically corrects caravan sway by applying braking force to the left and right brakes independently. It is not compatible with disc brakes.

Reversing Camera

  • Reversing camera with both wide and narrow lenses
  • In-vehicle monitor provides comprehensive visibility

GPS Odometer

The Hummingbird Electronics Odometer operates via GPS and makes tracking service intervals effortless.

Internal

Floor Plans

  • Chaise Lounge + Dual Induction
  • Chaise Lounge + Bunks
  • Chaise Lounge + Bunks showing overhead cabinets
  • Cafe Lounge + Dual Induction

Measurements

  • Couples
  • Family

Door Positions

  • Queen Bed (rear door)
  • Queen Bed + Bunks (front door)

Bed Options

We offer a comfortable queen mattress and luxurious pillow-top option. If choosing bunks, each bunk comes with its own fan as standard.

Bedroom Features

  • Gas strut assisted lift-up bed storage area
  • Twin bedside robes with hanging rail
  • 12V & USB outlets
  • Overhead storage lockers
  • Padded upholstered bed head
  • Foot lockers

Kitchen Features

  • Synthetic stone benchtop
  • Awning side serving window
  • Large undermounted sink
  • Soft close drawers with locking latches
  • Full height pull-out double pantry (only available in couples layout)

Fridge

  • Closed view
  • Open view

The Thetford Fridge & Freezer is 274L total volume – 202L fridge and 72L freezer. It efficiently runs on 12V and features internal LED lighting.

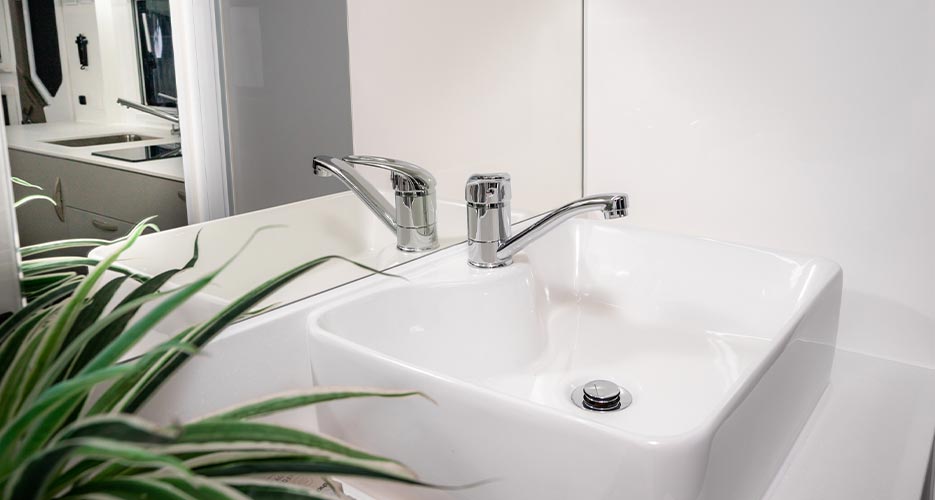

Kitchen & Bathroom Fittings

Flooring

Cabinet Construction

  • Zone RV’s unique composite (timberless) cabinetry with alloy plating system and positive locking smooth pull latches
  • Overhead locker storage in kitchen, living, over bed and ensuite with twin gas strut assist
  • Removable shelves to upper cabinets in kitchen, lounge and bedroom robes
  • The Ultralight Composite option saves ~35kg

Overhead Cabinets

Lower Cabinets

Lounge Colour & Upholstery

Our PU Leather option is high quality, but leather is more durable and breathable.

We use New Zealand leather which may have colour and grain variations due to the nature of this natural material.

Lounge Configuration

The Cafe Lounge option includes footrests.

Cooktop

Safiery Dual Induction

Microwave

The Microwave is a 20L and 700w. Featuring a positive door lock to prevent opening during travel, this microwave oven is designed specifically for the RV market.

Not choosing a microwave is another popular choice for those looking to save weight.

Ensuite

  • Nature’s Head composting toilet
  • Vanity basin with mixer tap
  • Internal shower cubicle

Diesel Water Heater

  • 15L diesel buffer tank
  • Plumbed to the shower
  • Plumbed to the kitchen
Webasto diesel hot water system

Air Conditioner

  • 2,400W cooling
  • 1,700W heating
  • Works with 3,000W Inverter option
  • Efficient Diesel Air Heater recommended for longer stays off-grid

Note: You can only select air-con with a minimum of 400ah of batteries.

Diesel Air Heater

Diesel air heater

Interior Features

  • REDARC RedVision Display Unit
  • 2 wall mounted 12V fans
  • 12V USB and 240V outlets
  • LED strip lighting
  • Dimmable touch lights in that luminate in white or blue

Security

The WITI the Motion Sensor (led light above the diesel heater controller) will detect movement and it will sound a loud alarm, and it will apply the brakes on the caravan if someone tries to move the van.

The GPS tracking feature is a Subscription paid directly to Witi,

$49 per year – The signal is sent once per hour to the Cell towers to track the caravan location. This is better suited for weekend trips.

$228.00 per year The signal is sent constantly to the Cell towers to track the caravan location.  Better for full time travelling.

TV

TV Antenna

The Milenco Power 900 is omnidirectional and offers an exceptional 38dB gain.

Satellite TV

  • Automatic 80 second setup
  • Australia wide coverage of VAST and Foxtel Satellite TV (box and subscription not included)
  • Rugged construction
  • Stows horizontal for travel

Sound System

The touchscreen Fusion sound system pairs with your devices via Bluetooth.

Mobile Phone Signal Booster

The Cel-Fi Go boosts any available mobile signal up to 30 times and all devices inside the caravan will benefit. We only offer the Telstra unit for the best reception across Australia and this unit boosts 3G and 4G.

Washing Machine

  • Great for off-grid living
  • Uses 18L per load on quick wash

External

Composite Toolbox

  • Zone RV designed and built
  • Composite to reduce weight
  • ~1,100L internal volume
  • Gull-wing doors open upwards for easy access, and the single dividing shelf internally keeps gear organised
  • Rubberised coating to protect from stone damage
  • A compressor outlet utilising the onboard compressor for tyre inflation.
  • Angled front to deflect stones downward
  • The access on the right side houses 1 x 4kg gas bottles. These are out of the way yet easy to access when refilling
  • One central jerry can mount
  • Two storage areas on the sides for fire-wood or dirty gear

Outdoor Lights

  • A powerful LED work light is positioned above the toolbox to aid in hooking up and working in this area.
  • An additional light is fitted above the forward left gear tunnel opening.

Power Jack

Our Power Jack is standard on all our models for ease of use and safety.

Windows & Doors

  • Premium entry door with security mesh
  • Double glazed tinted windows with block out blinds and insect screens
  • Marine style external hatches

Step

Stabilisers

Two rear stabilisers in combination with the Power Jack provide the necessary stability at camp while saving weight. Front stabilisers are also available if you prefer.

Awning

Awning width is 17ft

Outdoor Kitchen

  • Includes Portable Induction Stove
  • Collapsible sink
  • Outdoor TV Bracket
  • 240 power outlets
  • 12v outlets
  • Spacious storage solutions

Outdoor Tap & Shower

  • Lockable outdoor tap
  • Hot & cold outdoor shower

Ladder

The ladder is helpful for cleaning solar panels and roof accessory checks. Ladder not available when dual spare tyres selected.

BBQ Slide

  • The BBQ Slide is perfect for your cooking appliance or as a quick outdoor table.
  • It features a durable stainless top for food preparation and a composite body for weight saving.
  • Gas bayonet for BBQ.

Bike Carrier Mount

  • This mount attaches above the rear bar and suits the iSi bike carriers specifically (sold separately). These carriers are particularly strong across corrugations and don’t obstruct the lights or number plate.
  • The ISI bike mounts are rated to hold 32 kg in total. Please note this is not including the weight of the bike rack itself.
Bike Carrier mount

Your Build



Delivery timeframe: October 2024
